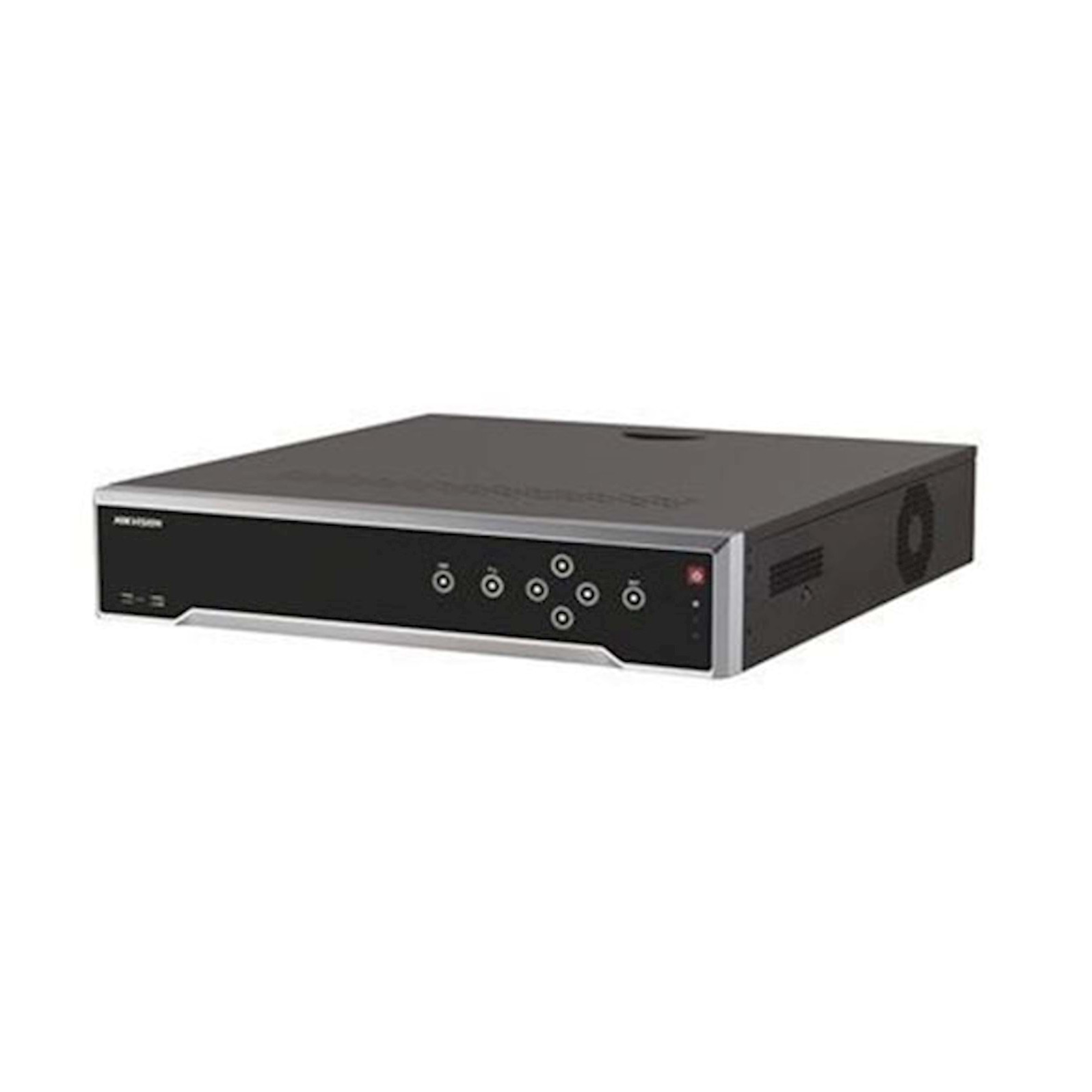

DS-7716NI-K4 16 Kanal NVR (4 SATA, H.265+)
DS-7716NI-K4 16 Kanal NVR
Çift işletim sistemi desteği,
H.265/H.264/MPEG4, 8MP çözünürlüğe kadar kayıt desteği,
kayıt bant genişliği: 160Mbps, İzleme bant genişliği: 160Mbps,
1 x HDMI (4K, 2K, 1080p çıkış desteği), 1xRS232
1xVGA desteği (1080p), 1x Ses çıkışı, 2xUSB 2.0, 1x USB 3.0,
kayıttan eş zamanlı oynatma: 16 kanal,
4 x SATA (8TB'a kadar), çift yönlü ses desteği,
ANR, 2x 10/100/1000 Mbps Ethernet Arayüz, 1xRS485,
Alarm girişi/çıkışı: 16/4, Rack montaja uygun: 1.5U
Stok Kodu: DS-7716NI-K4
ds-7716ni-k4| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| IP video input: | 16-ch | |
| Network | ||
|---|---|---|
| Remote connection: | 128 | |
| Incoming bandwidth: | 160Mbps | |
| Outgoing bandwidth: | 160Mbps | |
| Video/Audio Output | ||
|---|---|---|
| HDMI Output: | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
| Recording Resolution: | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) | |
| Synchronous Playback: | 16-ch | |
| VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz | |
| Decoding | ||
|---|---|---|
| Capability: | 8-ch@1080P | |
| Live view / Playback: | 8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
| Hard Disk | ||
|---|---|---|
| SATA: | 2 SATA interfaces for 2 HDDs | |
| Capacity: | Up to 8TB capacity for each HDD | |
| External Interface | ||
|---|---|---|
| Network Interface: | 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces | |
| Serial Interface: | RS-232; RS-485; | |
| USB Interface: | Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0 |
|
| Alarm In: | 16-ch | |
| Alarm Out: | 4-ch | |
| General | ||
|---|---|---|
| Power Supply: | 100 to 240 VAC | |
| Consumption(without hard disk and POE): | ≤20 W | |
| Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Chassis: | 19-inch rack-mounted 1.5U chassis | |
| Dimensions: | 445 × 390 × 70 mm (17.5"× 15.3" × 2.8") | |
| Weight(without HDD): | ≤ 5 Kg (11 lb) | |
